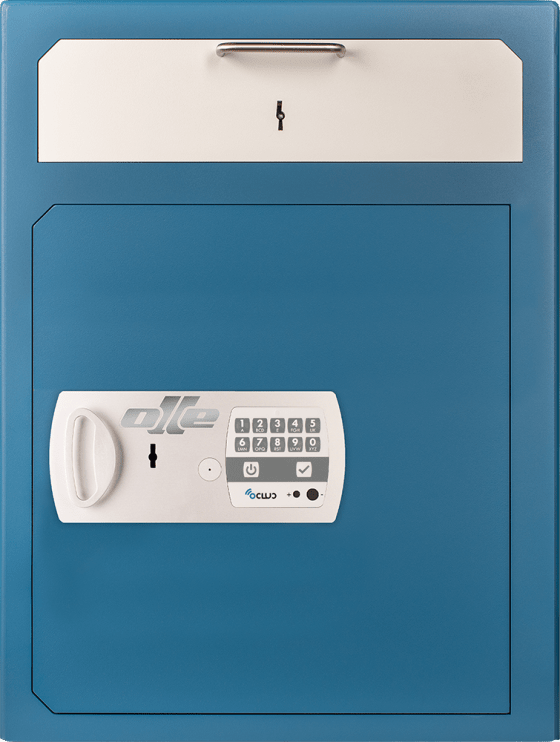

SUB Series Anti hold-up safe
Cash boxIs the ideal solution to prevent robberies in retail establishments. It has a drawer with sliding gides, in front of which there is a compartment for sorting banknotes and a tilting system on the backside for evacuating the money towards the inside safe.
Specifications
- 8-mm thick steel door and frame.
- 3-mm thick steel body.
- Ø20-mm revolving bolts: 3 at the side, 1 at the top and 1 at the bottom.
- Upper drawer with double-bitted lever mortise lock.
- Note classifier in top drawer.
- Ø10-mm. floor anchoring bolt-holes.
- Epoxy-polyester paint finish, polymerised at 180 ºC. Colour Ral 5009 and Ral 7035.
Models
| Lever lock | Electronic | Electronic and lever lock | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Exterior Measurements (mm.) | Interior Measurements (mm.) | Measures Use (mm.) | Internal Volume | Weight | Bolts Number | Number of Shelves | Drawers Units | Anchors units | |||||||||
 |  |  |  |  |  |  |  |  | A | B | C |  |  |  |  |  |  |
| SUB800L | SUB800E | SUB800LE | 600 | 455 | 500 | 460 | 450 | 495 | 512 | 887 | 358 | 92 | 70 | 5 | 1 | 1 | 4 |
| SUB820L | SUB820E | SUB820LE | 600 | 455 | 500 | 235 | 450 | 495 | 512 | 887 | 358 | 52 | 78 | 5 | - | 2 | 4 |
| SUB800LL | SUB800EL | SUB800LEL | 600 | 455 | 500 | 460 | 450 | 495 | 512 | 887 | 358 | 92 | 70 | 5 | 1 | 1 | 4 |
| SUB820LL | SUB820EL | SUB820LEL | 600 | 455 | 500 | 235 | 450 | 495 | 512 | 887 | 358 | 52 | 78 | 5 | - | 2 | 4 |
Left opening
